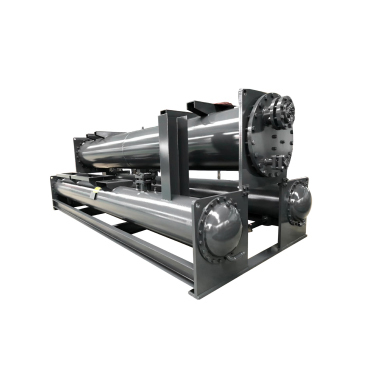

Shell And Tube Heat Exchangers

A shell and tube heat exchanger is a durable, versatile device widely used in industrial applications to transfer heat between two fluids without mixing them. It features a cylindrical shell housing a bundle of tubes—often made of stainless steel, copper, or titanium—where one fluid flows through the tubes (tube side) and the other flows around them within the shell (shell side). Key components include tube sheets that secure the tubes and separate the fluids, baffles that guide the shell-side fluid in a zigzag pattern to enhance turbulence and heat transfer, and headers/nozzles for fluid entry and exit, ensuring efficient thermal performance across diverse operating conditions.

Deskripsi

Shell and tube heat exchangers have a wide range of applications, a few of which are:

Petrochemical Industry；
Power Generation；
HVAC；
Marine；
Food Processing；
Industrial Processes Oil Cooling；

A shell and tube heat exchanger is designed as a robust and versatile thermal transfer solution, consisting of a cylindrical shell housing a bundle of precision-engineered tubes. One fluid flows through the tubes (tube side), while another passes across them within the shell (shell side), allowing efficient heat transfer through the tube walls without direct mixing of the fluids. The assembly includes tube sheets, baffles, and end covers, all engineered to optimize fluid distribution, enhance turbulence, and maximize heat exchange efficiency.

Different configurations—such as fixed tube sheet, floating head, or U-tube designs—provide flexibility to meet diverse operating conditions, from high-temperature differentials to fouling-prone applications. Materials can be customized, with options including carbon steel, stainless steel, copper alloys, or titanium, ensuring reliable performance in corrosive, high-pressure, or high-temperature environments.

Shell and tube heat exchangers are widely used in petrochemical plants, power generation, HVAC, refrigeration, marine, food processing, and pharmaceutical industries. Their proven design, scalability, and adaptability make them an ideal choice for applications such as cooling water, condensing steam, recovering waste heat, or heating process fluids. With high thermal efficiency, long service life, and easy maintenance, shell and tube heat exchangers provide a cost-effective and energy-saving solution for demanding industrial processes.
